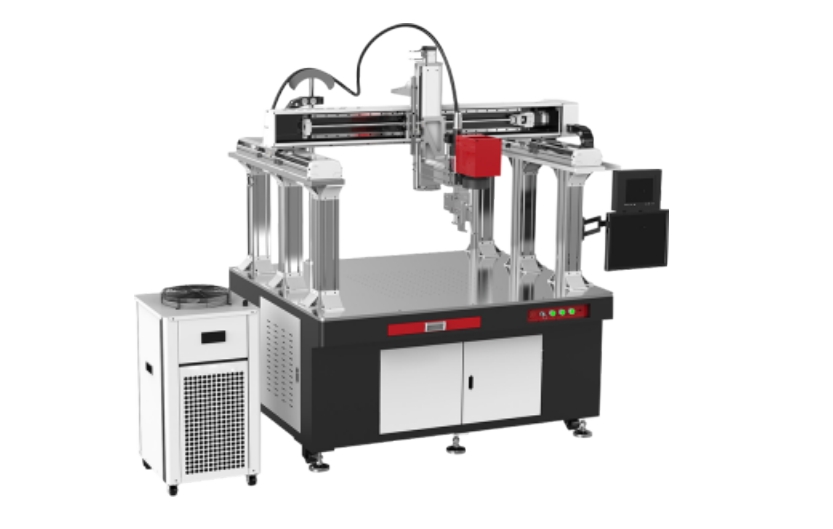

Gantry Galvanometer Laser Welding Machine
PRODUCT CATEGORIES
|
Product Features
|
|
||||
|---|---|---|---|---|---|
|
1.It can perform large-format welding, support the simultaneous installation of multiple sets of fixtures, and can weld various specifications of battery packs;
2.Laser welding spot is fine, with small taper, high accuracy, and the welding surface is flat without bubbles; 3.Fast welding speed and increased work efficiency by 3-5 times; 4.Multiple operation modes, including spot welding, butt welding, overlap welding, seal welding, etc; 5.It can be used for graphic welding processing consisting of laser points, straight lines, circles, squares, and other planes; 6.Suitable for various types of batteries such as square aluminum shell power battery packs, polymer power battery packs, cylindrical power battery packs, large monomer to nickel conversion, welding studs, and large polymer electrode tab to nickel conversion. |
|||||
|
Items
|
Technical Parameters
|
||||
|---|---|---|---|---|---|
|
Model
|
GLWM-1500/2000/3000/6000
|
||||
|
Operating Mode
|
Continuous/Modulation
|
||||
|
Output Power
|
1500W/2000/3000W/6000W
|
||||
|
Wavelength
|
1080nm
|
||||
|
Laser Frequency
|
10-20000Hz
|
||||
|
Red Light Power
|
0.2mW
|
||||
|
Output Fiber Optic Terminal
|
QBH
|
||||
|
Fiber Length
|
15M
|
||||
|
Minimum Bending Radius
|
200MM
|
||||
|
Operating Ambient Temperature
|
10-40
|
||||
|
Operating Range
|
1000*700*400mm Customizable
|
||||
|
Cooling Mode
|
Water-Cooling
|
||||
