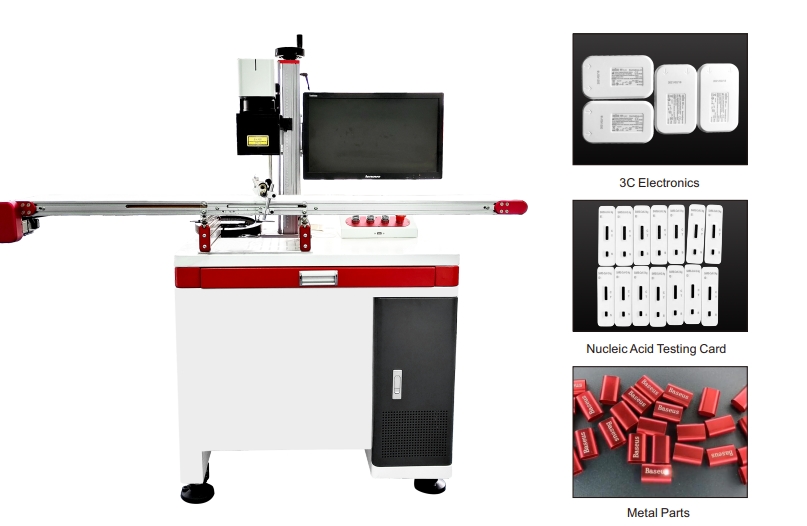

Visual Laser Marking Machine
PRODUCT CATEGORIES
|
Product Features
|
|
||||
|---|---|---|---|---|---|
|
1.Low labor cost, one person can operate multiple machines;
2.High machining accuracy, even small workpieces can be machined, reducing human operation errors; 3.Workpieces can be placed arbitrarily without the need for tooling fixtures; 4.Improve the yield rate and visually recognize the position of the workpiece automatically; 5.Increase production capacity by 100% -300% through assembly line batch processing; 6.Missed printing alarm system, automatically identifying missed printing and handling shutdown alarms. |
|||||
|
Items
|
Technical Parameters
|
||||
|---|---|---|---|---|---|
|
Model
|
FLMM-20/30/30
|
||||
|
Laser Output Power
|
20W/30W/50W
|
||||
|
Function
|
Target Tracking And Positioning Multi Target Parallel Tracking Galvanometer Distortion Calibration Laser Focusing Assistance Automatic Fill Light
|
||||
|
Laser Type
|
Fiber Laser UV/CO2 Optional
|
||||
|
Positioning Accuracy
|
0.05-0.15mm
|
||||
|
Positioning Speed
|
＜100ms
|
||||
|
Working Distance
|
Depending on Different Specifications of Field Mirrors
|
||||
|
Camera Data Interface
|
USB/Gigabit Ethernet Port
|
||||
|
Software Trigger
|
Support
|
||||
|
Locate Mode
|
Static/Dynamic
|
||||
|
Power Supply
|
AC220V/50Hz
|
||||
|
Software
|
Visual Positioning Software
|
||||
